Competitive cost
Factory-side pricing for qualified HP and UHP electrode inquiries.
Manufacturer of HP & UHP Graphite Electrodes and Matching Nipples
UHP & HP graphite electrodes for electric-furnace steelmaking.
Direct factory supply of graphite electrodes and matched nipples for EAF and ladle-furnace operations - quoted from your real furnace requirements, not a generic catalogue.
Company-stated 80,000+ t/yr design capacity
HP Φ250‑Φ600 · UHP Φ250‑Φ700 mm
ISO 9001 · 14001 · 45001
Trial orders welcome
80,000+ t/yr
company-stated annual design capacity
HP Φ250‑Φ600
UHP Φ250‑Φ700 mm
200,000 m²
company-profile industrial-site figure
ISO Systems
9001 · 14001 · 45001; status rechecked before contracting
Product Positioning
Electrodes for high-load steelmaking, quoted from real furnace requirements.
Yulinde manufactures graphite electrodes and nipples for electric furnaces. Every quote starts with the operating context: furnace type, current load, grade, diameter, length, connection, consumption, destination port, and payment route.
Reliable supply
Capacity and process control for repeat melt-shop procurement.
Fast RFQ response
Specs, trade terms, and documents gathered before quotation.
Trade & compliance
Destination, payment route, and duty exposure screened early.
HP Graphite Electrode
High Power- Diameter
- Φ250‑Φ600 mm
- Resistivity
- Body ≤6.5 · nipple ≤5.5 µΩ·m
- Bulk density
- Body ≥1.63 · nipple ≥1.72-1.73 g/cm³
UHP Graphite Electrode
Ultra High Power- Diameter
- Φ250‑Φ700 mm
- Resistivity
- Body ≤6.0-5.5 · nipple ≤4.0 µΩ·m
- Bulk density
- Body ≥1.70 · nipple ≥1.78-1.80 g/cm³
Technical Selection
Fast spec screen for procurement teams.
Values below are transcribed from the supplied Yulinde brochure. Confirm final values against the latest mill test certificate and signed specification before contracting.
Selected physico-chemical specification
| Grade | Property | Electrode body | Nipple |
|---|---|---|---|
| HP | Resistivity | ≤6.5 µΩ·m | ≤5.5 µΩ·m |
| Bending strength | ≥10.0 MPa | ≥18.0-19.0 MPa | |
| Bulk density | ≥1.63 g/cm³ | ≥1.72-1.73 g/cm³ | |
| CTE | ≤2.2 ×10⁻⁶/°C | ≤1.6 ×10⁻⁶/°C | |
| UHP | Resistivity | ≤6.0-5.5 µΩ·m | ≤4.0 µΩ·m |
| Bending strength | ≥10.5-11.0 MPa | ≥20.0-22.0 MPa | |
| Bulk density | ≥1.70 g/cm³ | ≥1.78-1.80 g/cm³ | |
| CTE | ≤1.5-1.4 ×10⁻⁶/°C | ≤1.4-1.2 ×10⁻⁶/°C |
Web summary revision 2026-08-03. Diameter-dependent ranges are transcribed from the Yulinde product catalog, pp. 12-13. Final signed specification and current lot certificate control.

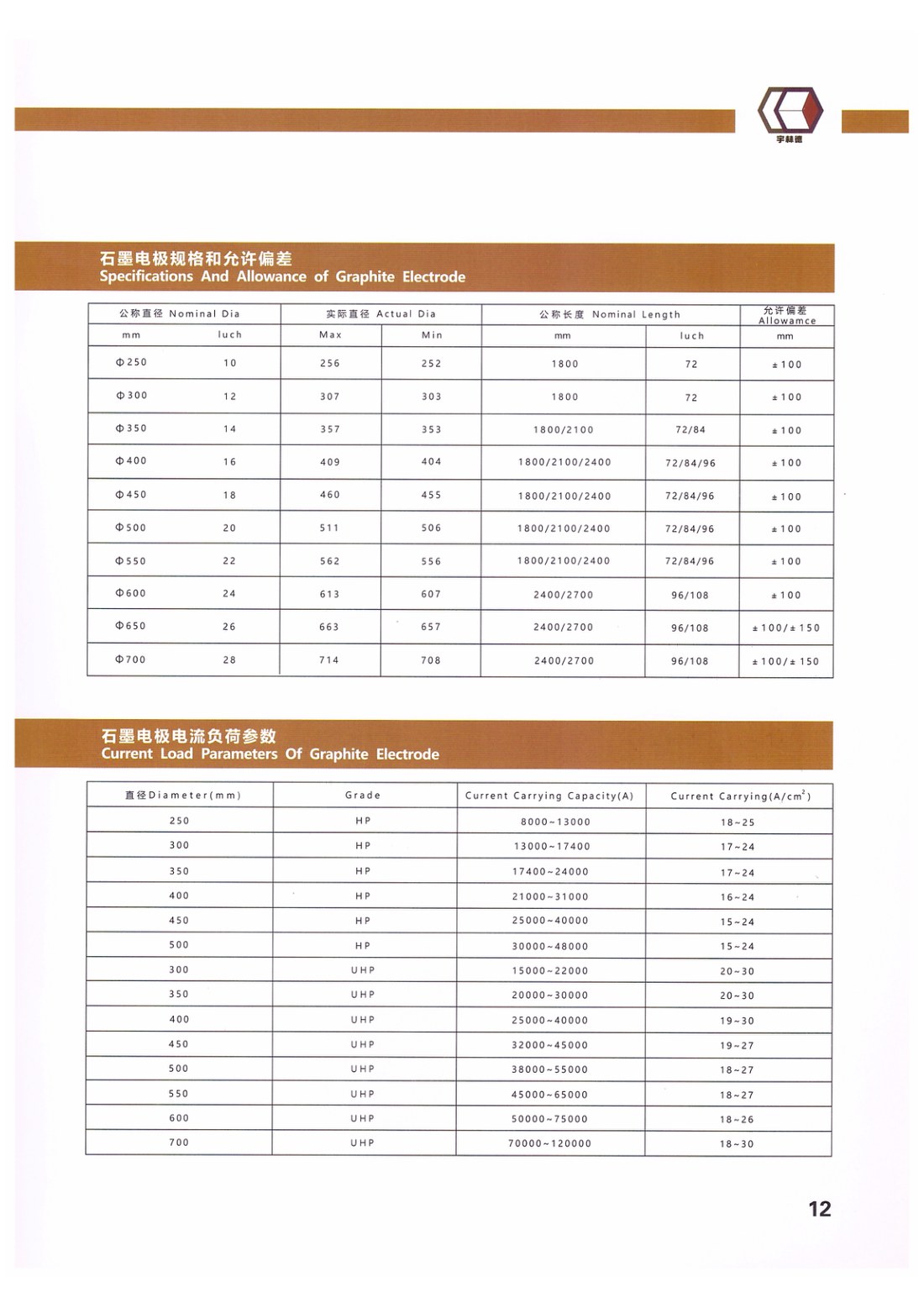

Current-carrying reference (A)
| Diameter | HP capacity | UHP capacity |
|---|---|---|
| Φ300 | 13,000-17,400 | 15,000-22,000 |
| Φ400 | 21,000-31,000 | 25,000-40,000 |
| Φ500 | 30,000-48,000 | 38,000-55,000 |
| Φ600 | - | 50,000-75,000 |
| Φ700 | - | 70,000-120,000 |
Selection reference only. Confirm furnace design, current density, duty cycle, connection and final signed specification before use.

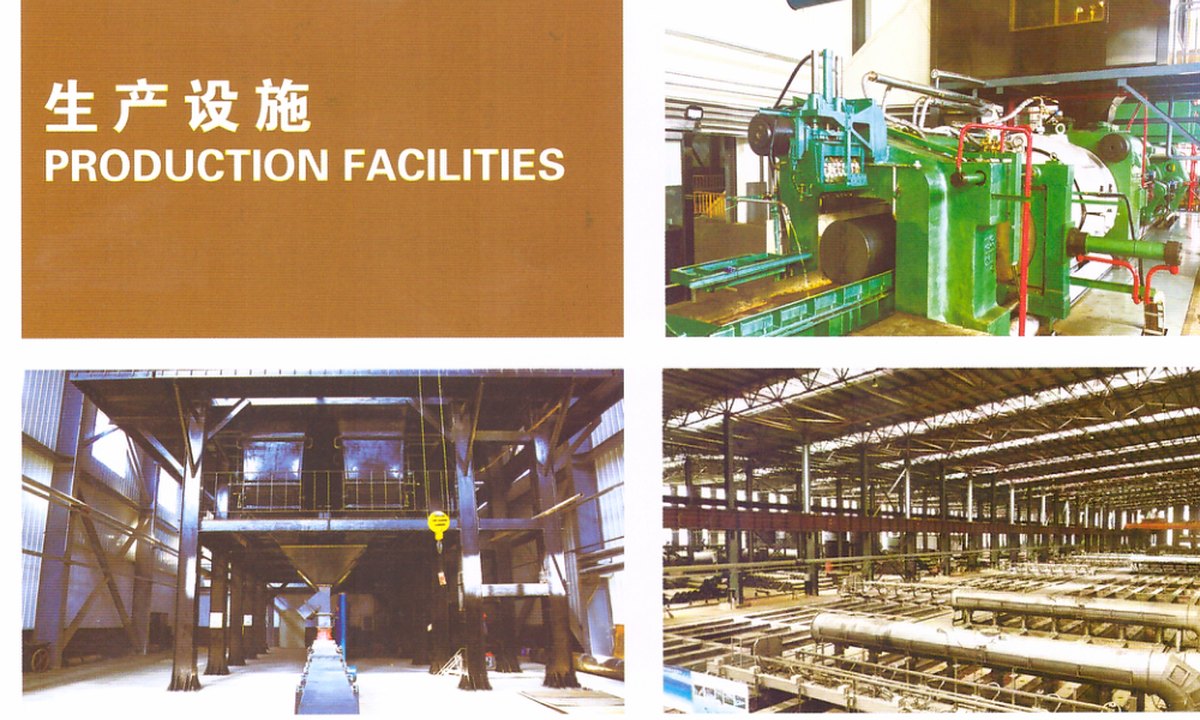

Manufacturing Flow
From needle coke to machined electrode and nipple.
Yulinde's documented production route covers raw-material selection, crushing and proportioning, mixing, forming, baking, pitch impregnation and rebaking, graphitization, machining, final inspection and packing.
Raw material
needle coke selection
Crushing
screening & proportioning
Mixing
pitch & aggregate blend
Forming
green electrode body
Baking
density & strength
Pitch impregnation
↻ rebaking loop as required
Graphitization
high-temperature treatment
Machining
threading & nipple match
Inspection & packing
shipment-ready bundles
Evidence & Quality
Specific proof buyers can review before contracting.
Public summaries below are tied to dated company records. Current-lot values, certificate status and final requirements are reconfirmed during quotation and contracting.

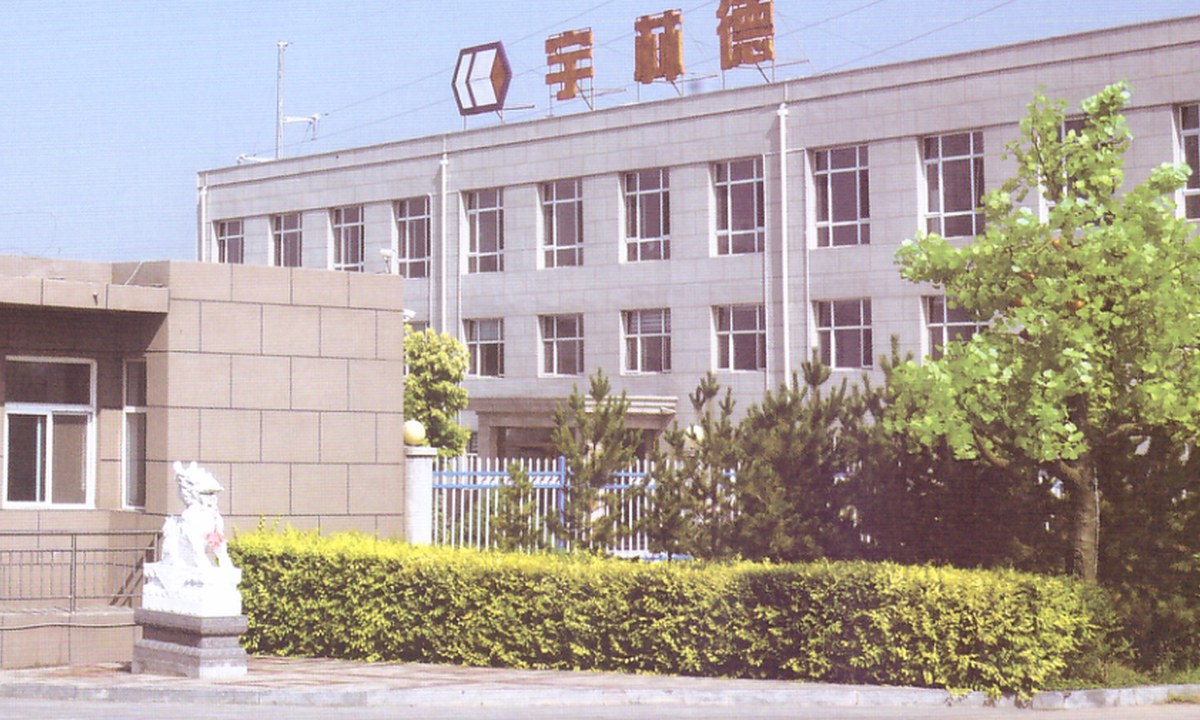

Established in 2012
Datong Yu Lin De Graphite New Material Co., Ltd. was incorporated on May 14, 2012 in Datong, Shanxi.
UHP Φ600 × 2400 mm
Report G2021040126 found all inspected items conformed to YB/T 4090-2015. This is dated 2021 evidence, not a current-lot MTC.
2026 classification
The current classification states graphite electrode is not subject to the IMO IMDG Code and has no assigned packing group.
Registration through 2030
Fixed-pollution-source discharge registration for the Datong production address is stated valid through March 25, 2030. It is a registration, not a discharge permit.
Documents available by inquiry or order stage
Technical specification, current-lot certificate request, packing photos/details, Certificate of Origin support and current transport-classification documentation. Transaction-specific samples are shared in controlled form.

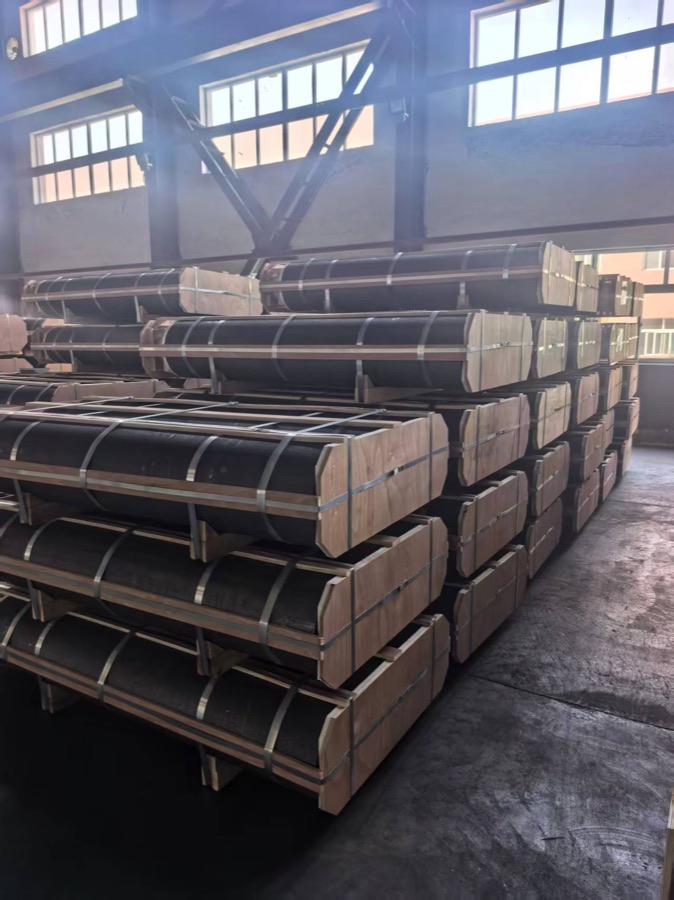

Shipment Readiness
Actual packing from the Yulinde warehouse.
Graphite electrodes are shown in wood-framed supports with multi-band restraint and protected ends. Final packing is confirmed against size, quantity and destination requirements.
- Size and quantity checked before packing
- Electrode ends protected inside the support frame
- Shipment documentation prepared for the agreed trade route
Export Focus
Built for qualified melt-shop inquiries worldwide.
Yulinde welcomes qualified inquiries worldwide. Each opportunity is reviewed for technical fit, destination requirements, logistics, payment feasibility and applicable trade controls before quotation.
▸ Worldwide inquiries welcome
Best-fit buyer
EAF mills, ladle furnace users, ferroalloy producers, steel foundries, and procurement importers.
Qualification signals
Grade, furnace size, diameter, annual consumption, current load, trial quantity, and payment route.
Risk screen
Anti-dumping duties, sanctions exposure, bank/payment feasibility, and transshipment red flags.
Worldwide inquiry coverage
Export inquiries are considered worldwide, subject to technical fit, workable logistics, payment feasibility and applicable trade controls. Shipment references are shared during qualification where customer confidentiality permits.
Technical RFQ
Send the details melt-shop teams actually need.
Start with the essentials and add what you know. Your answers create a clean RFQ email with buyer country, furnace context, electrode specification, order size, destination, and commercial constraints.
What happens next
We review the technical fit, confirm availability, and reply with the right documents and trade terms.
